JX Custom Size Die for Many Kinds of Aluminium Extrusion Mould Maker

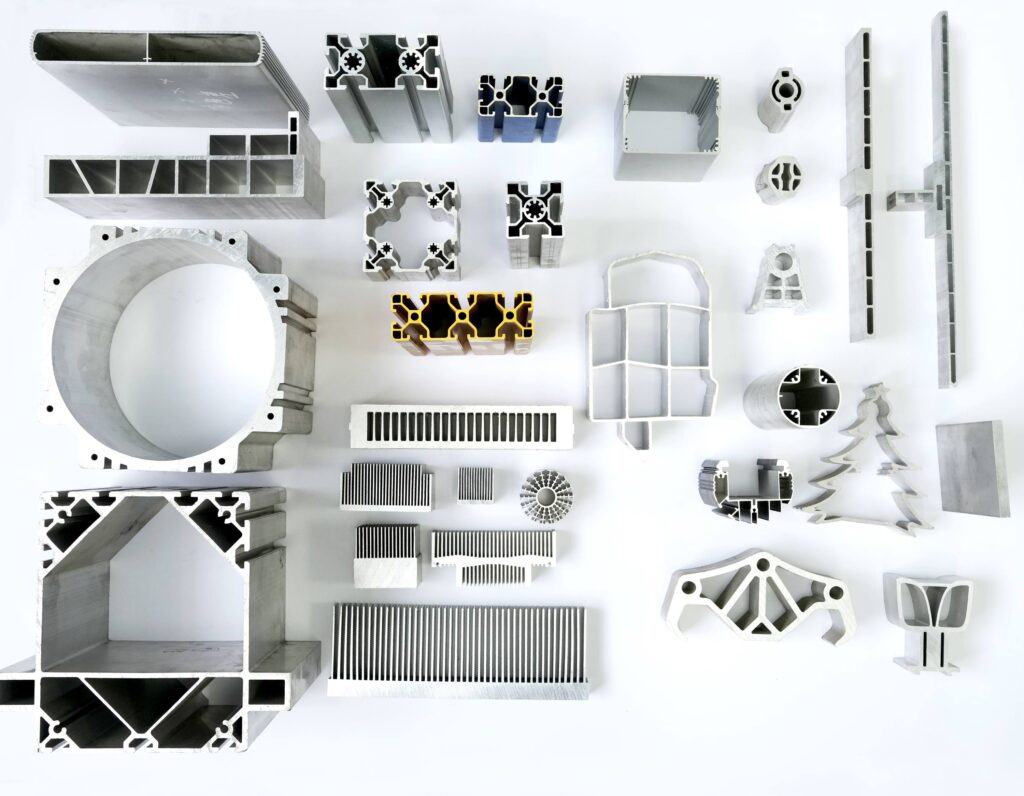

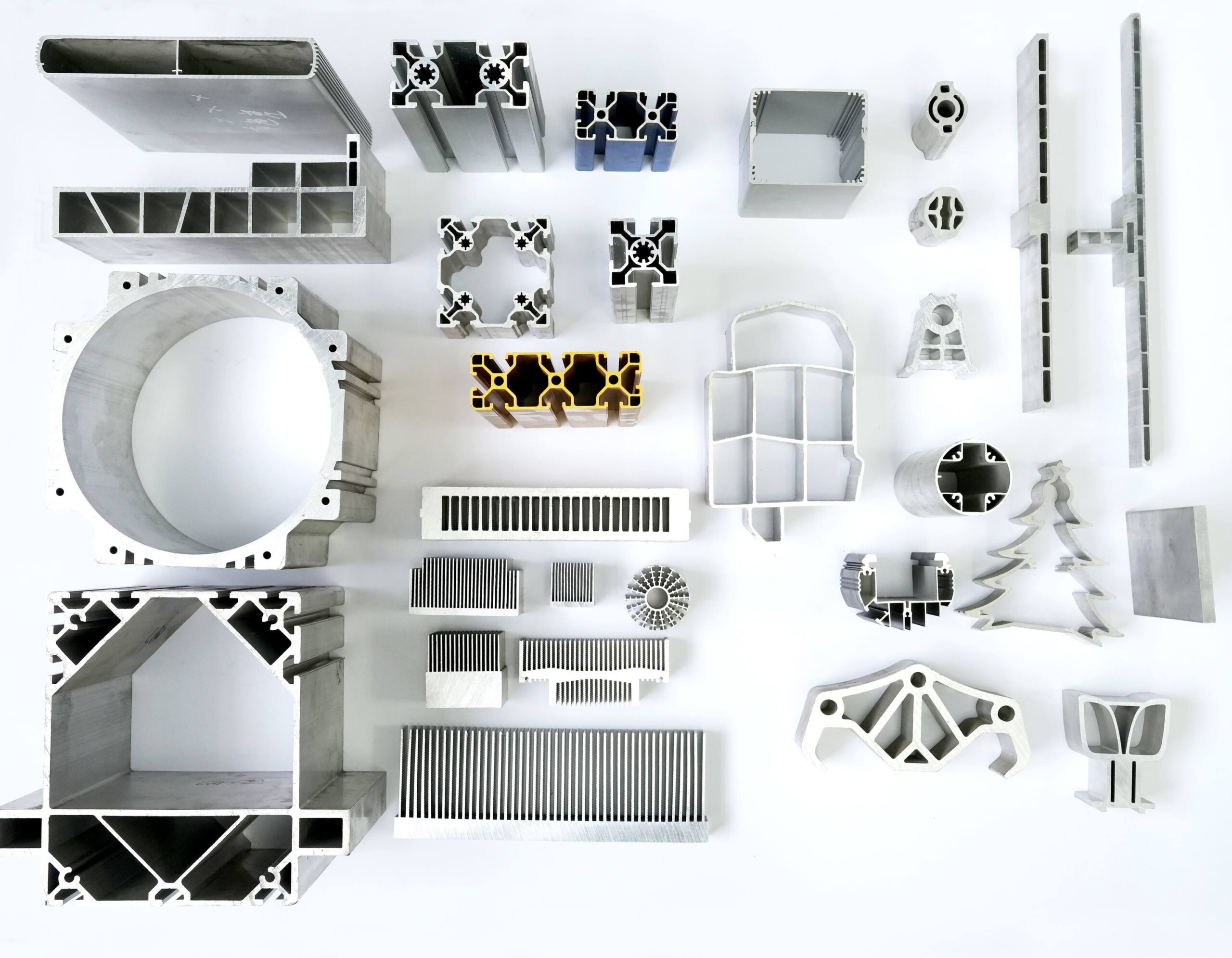

Wide variety of aluminum profiles across industrial, construction, automotive, and architectural applications
JX Custom Size Die for Many Kinds of Aluminium Extrusion Mould Maker
Price Range: US$100-2,000

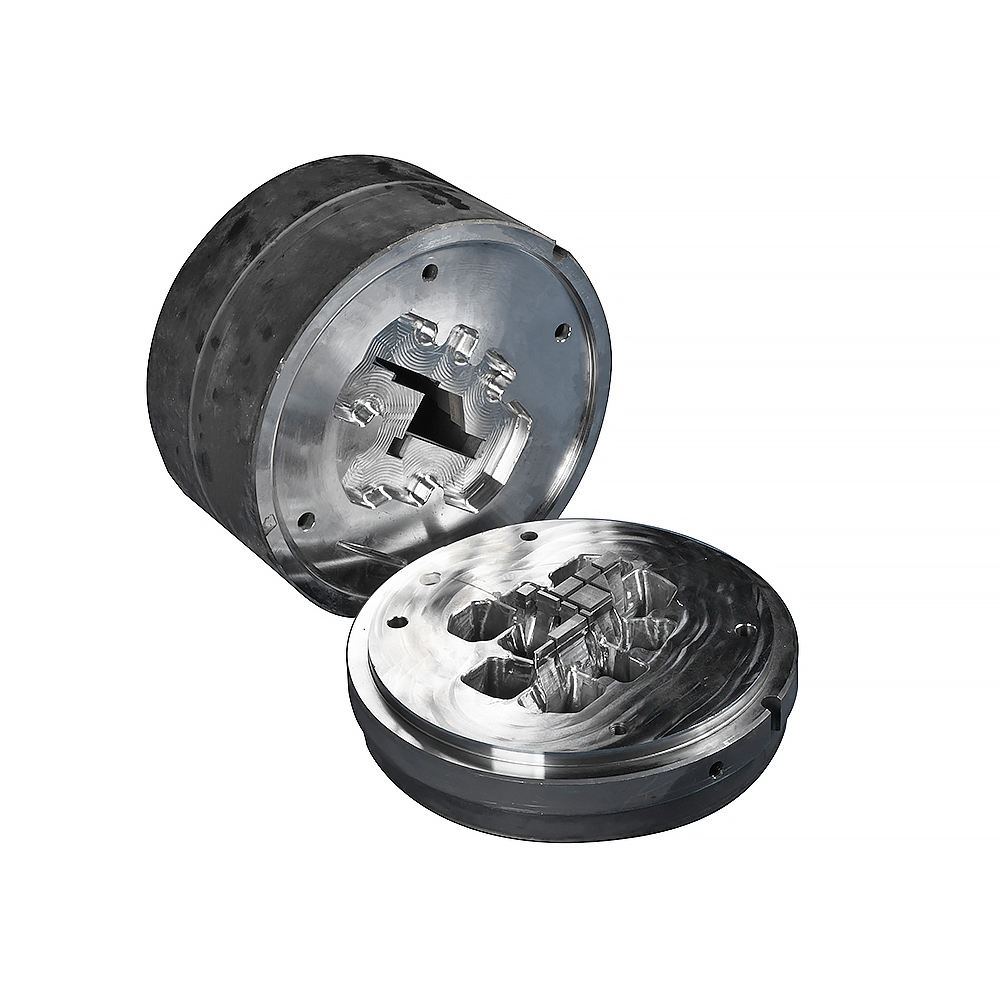

The JX Custom Size Aluminum Extrusion Die is designed for manufacturers that need purpose-built tooling for producing aluminum profiles in different shapes, dimensions, and applications. Instead of limiting production to standard profile sizes, the die can be customized according to the customer’s drawings and specific profile requirements. This makes it a practical solution for manufacturers producing specialized aluminum components for industrial, construction, transportation, equipment, and other applications.
Product Description:
A well-designed extrusion die plays an important role in determining the shape and dimensional consistency of the finished aluminum profile. JX custom-size dies can be developed around the required profile geometry, taking the customer’s technical drawings and production requirements into consideration. Careful die development helps control how aluminum passes through the tooling and supports consistent profile formation throughout the extrusion process.
The ability to customize the tooling also gives manufacturers greater flexibility when developing new aluminum products or producing profiles for specialized projects. Whether the requirement involves a relatively simple structural profile or a more specialized cross-sectional design, customers can submit their drawings and specifications for evaluation. This approach allows JX to provide an aluminum extrusion die that is better matched to the intended product and manufacturing requirements.
Key Features
- Custom Sizes and Dimensions
The extrusion die can be customized according to the required profile size, dimensions, and cross-sectional design. - Made to Customer Drawings
Customers can provide CAD drawings or detailed technical specifications to support the development of application-specific tooling. - Multiple Application Options
Suitable for aluminum profiles used across construction, industrial equipment, transportation, machinery, structural systems, and general manufacturing. - Precision Die Design
The tooling is developed to help maintain the required profile geometry and dimensional consistency during extrusion. - Flexible Profile Development
Custom dies provide greater flexibility for manufacturers producing specialized profiles that may not be available through standard tooling. - Production-Oriented Tooling
The mold can be developed with the intended extrusion and production requirements in mind, helping support stable and repeatable profile manufacturing.
Key Attributes
| Product | Industries and construction | Shaping Mode | Extrusion Mould |
| Product Material | Steel | Place of Origin | Jiangsu, China |
| Brand Name | Jingxiu | Model Number | Auto Battery Tray Mould-5 |
| +86 18071851918 | Design Software | AutoCAD | |
| Mould Life | Extrude 4-30 tons of profiles | Available Thickness | Over 0.3 millimeters |
| Mould Material | H13 | Delivery Period | 12-30 days |
| Customization | Support | ||
Packaging and Delivery
| Selling Units | Single item | ||
1. What is a custom-size aluminum extrusion die?
A custom-size aluminum extrusion die is tooling specifically manufactured to produce an aluminum profile with a required cross-sectional shape and dimensions. Rather than using an existing standard die, the tooling is developed according to the customer’s profile specifications.
2. Can JX manufacture the die according to my profile drawing?
Yes. The referenced product is offered as a custom-size die, allowing tooling to be developed according to customer requirements. Providing an accurate profile drawing helps the manufacturer evaluate the geometry and determine an appropriate die design.
3. What information should I provide for customization?
Customers should ideally provide a detailed CAD or technical drawing showing the required profile shape and dimensions. Information about tolerances, intended application, material, extrusion equipment, and other production requirements can also assist with tooling development.
4. What applications are suitable for custom extrusion dies?
Custom dies can be used to produce aluminum profiles for a broad range of applications, including industrial machinery, construction systems, transportation components, equipment frames, structural components, and customized manufacturing projects. Suitability ultimately depends on the required profile and production conditions.
What is the delivery time?
The standard delivery period ranges from 12 to 30 days depending on customization requirements and order quantity.
6. Can custom dies be made for complex aluminum profiles?
Custom extrusion tooling can accommodate many different profile geometries. For complex profiles, customers should provide complete technical drawings and production requirements so the manufacturer can evaluate the design and determine an appropriate tooling solution.
Would you like to start a project with us?
